R. Wolf 552510x ENDOCAM logic HD Camera controller

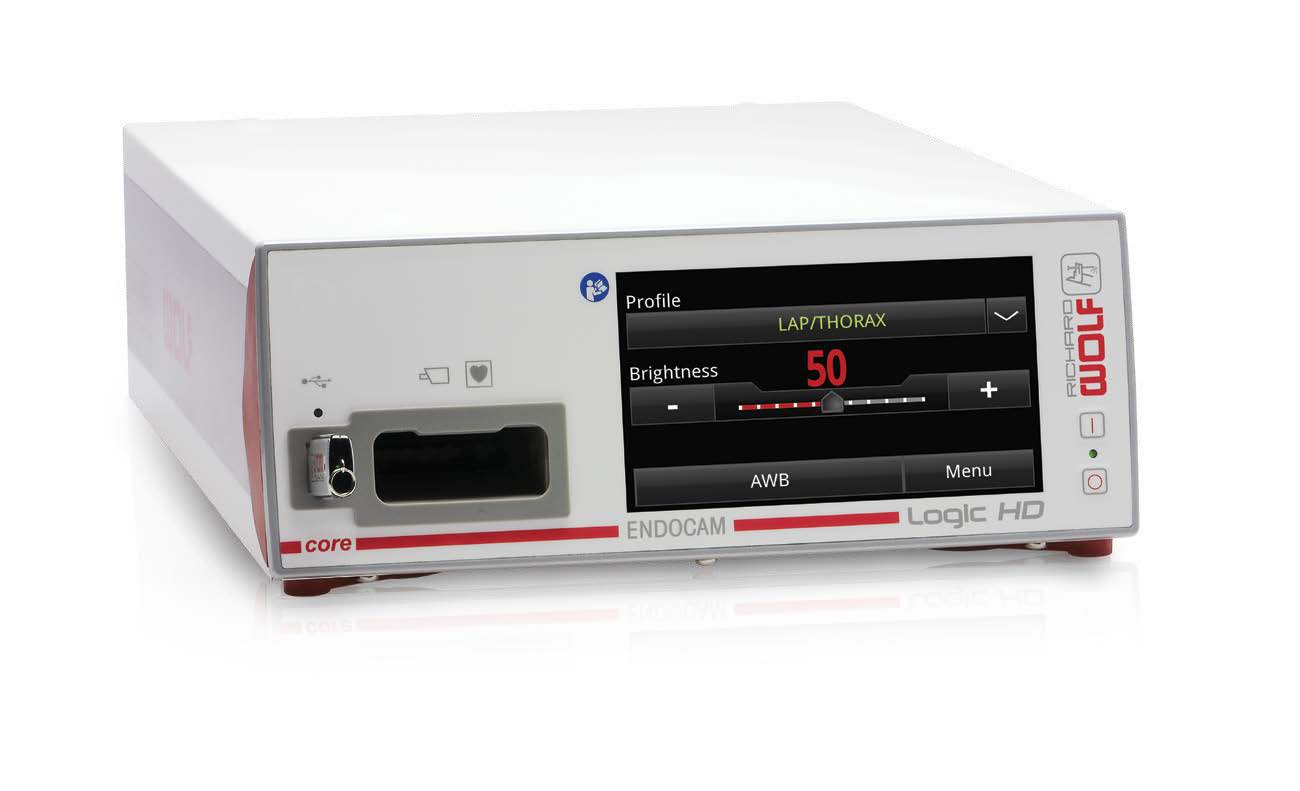

ENDOCAM logic HD Camera controller 552510x

Phone：+86-21-54286005

Resources

552510x_Brochure_EN

Overview Specifications Dimensions

ENDOCAM logic HD 552510x

Camera controller

552510x

Various equipment variants. The variants exclusively refer to the configuration of output and input signals
Digital signal processing
Outstandingly wide range of application due to integration of various applied parts and diagnostic methods
updates can be applied at any time via USB port
Storage of high-resolution images and HD videos on USB storage media
Integration of further image signals via picture-in-picture port(3G-SDI)
Specialized for use in integrated operating rooms as a central core nova module
User-friendly. Clinically-devised presets are pre-programmed for various disciplines. This includes applications using standard
and fiber endoscopes as well as sensor endoscopes with chip-on-the-tip technology. Personal settings can easily be saved as well
Maximum flexibility: The resolution of all signal outputs can be adapted individually to the connected system
Patient data can be entered using the connected USB keyboard
Direct printing possible
Modern, clearly arranged on-screen menu
Dialog function:
1. Control of connected ENDOLIGHT light source for optimum illumination with maximum protection for the endoscope
2. Monitor display of major device parameters for further devices (pressure indication, set flow, residual gas display, etc.)

ENDOCAM Logic HD controller complete
Comprising:
1x ENDOCAM Logic HD controller ...................................... 552510x
1x hand-held remote control USB ....................................... 5525401
1x USB flash memory 8 GB ..................................................... 56540028
1x CAN-BUS terminator ........................................................... 5590.989
1x HDMI / DVI-D cable, lockable, 3.0 m ............................. 103843
1x power cable ............................................................................. 2440.03
Controller equipment variants:
2x HDMI out ................................................................................. 55251011
2x HDMI out / 2x 3G-SDI out ................................................. 55251051
2x HDMI out / 2x 3G-SDI out / PIP in................................... 55251061
2x HDMI out / 2x 3G-SDI out / analog out......................... 55251071
2x HDMI out / 2x 3G-SDI out / PIP in / analog out.......... 55251081

Camera controller	552510x
Device properties
Type of controls	Touchscreen
Max. video signal resolution	1920 x 1200 pixels
White balance, color temperature range	2300 K to 7000 K
Noise level	34 dB to 48 dB max.
Digital zoom	1.5x max.
Individually configurable profiles	at least 5 profiles
Brightness control	Automatic shutter control + automatic gain control
Image format of saved pictures / videos	JPEG, TIFF (max. 1920 x 1080) / MPEG4 (max. 1920 x 1080)
Operating conditions	+10°C to +40°C, 30% to 75% rel. humidity, atmospheric pressure 700 hPa to 1060 hPa
Operating mode	Continuous operation
Equipment
IP rating	IP20
Cooling method	Controlled fan
Power supply
Mains + frequency	100-240 VAC, 50/60 Hz
Power consumption	100 VA
Current rating max.	1.0 A
Regulatory standards
Safety	US/ CA: UL 2601-1 / CSA C22.2 NO.601.1, EU: EN 60601
EMC	EN 60601-1-2 / IEC 601-1-2
Medical device class	Class 1
Classification of applied part	CF
Interfaces
Video outputs	2x 3G-SDI, 2x HDMI, 1x YC, 1x CV
PiP input	1x 3G-HD-SDI
Remote output	2 x 3.5 mm jack, stereo
USB port (on front panel, for external storage media)	USB 2.0 (FAT32/NTFS formatting)
Resolution (HDMI output)	Adjustable in the user menu
	1280 x 1024/60P (5:4)		1920 x 1080/60P (16:9)	1920 x 1200/60P (16:10)
Resolution (3G-HD-SDI output)	Adjustable in the user menu
	1280 x 720/50P (16:9)	1920 x 1080/50I (16:9)	1920 x 1080/50P (16:9)
	1280 x 720/60P (16:9)	1920 x 1080/60I (16:9)	1920 x 1080/60P (16:9)
Resolution of SD outputs for video (Composite) and S-Video (Y/C)	Adjustable in the user menu PAL 720 x 576/50/I (4:3) NTSC 720 x 486/59.94/I (4:3)
Resolution of picture-in-picture input (3G-SDI)	1280 x 720/50P (16:9)		1920 x 1080/50P (16:9)	1920 x 1080/50I (16:9)
	1280 x 720/60P (16:9)		1920 x 1080/60P (16:9)	1920 x 1080/60I (16:9)
Dimensions and weights
Weight	6.2 kg
Dimensions (W x H x D)	300 x 120 x 416 mm
