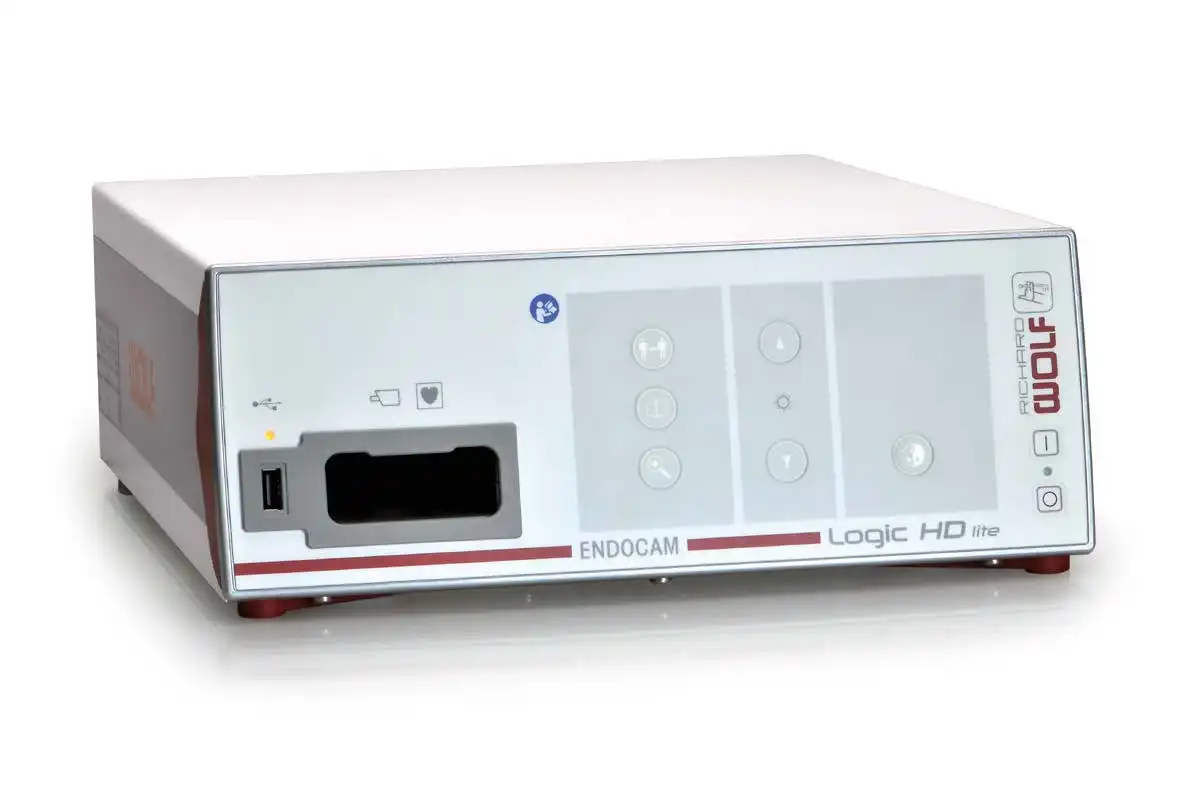

R. Wolf 5525201 ENDOCAM logic HD lite Camera controller

ENDOCAM logic HD lite 5525201 Camera controller

Phone：+86-21-54286005

Resources

Overview Specifications Dimensions

ENDOCAM logic HD lite 5525201

Camera controller

5525201

Maximum quality at a minimum price
Basic functions
User-friendly

ENDOCAM Logic HD Lite camera controller
complete .............................................................................................. 55252011
Comprising:
1x ENDOCAM Logic HD Lite camera controller ..................... 5525201
1x hand-held remote control USB .............................................. 5525401
1x USB flash memory 8GB ............................................................. 56540028
1x HDMI / DVI-D cable, lockable 3.0 m .................................... 103843
1x power cable ................................................................................... 2440.03
1x 5525 DVD license open-source software ............................ 64360816

Camera controller	5525201
Device properties
Type of controls	Mechanical button
Max. video signal resolution	1920 x 1200 pixels
White balance, color temperature range	2300 K to 7000 K
Noise level	34 dB to 48 dB max.
Digital zoom	1.5x max.
Individually configurable profiles	at least 5 profiles
Brightness control	Automatic shutter control + automatic gain control
Image format of saved pictures / videos	JPEG, TIFF (max. 1920 x 1080)
Operating conditions	+10°C to +40°C, 30% to 75% rel. humidity, atmospheric pressure 700 hPa to 1060 hPa
Operating mode	Continuous operation
Equipment
IP rating	IP20
Cooling method	Controlled fan
Power supply
Mains + frequency	100-240 VAC, 50/60 Hz
Power consumption	100 VA
Current rating max.	1.0 A
Regulatory standards
Safety	US/ CA: UL 2601-1 / CSA C22.2 NO.601.1, EU: EN 60601
EMC	EN 60601-1-2 / IEC 601-1-2
Medical device class	Class 1
Classification of applied part	CF
Interfaces
Video outputs	2x HDMI
Remote output	2 x 3.5 mm jack, stereo
USB port (on front panel, for external storage media)	USB 2.0 (FAT32/NTFS formatting)
Resolution (HDMI output)	Adjustable in the user menu
	1280 x 1024/60P (5:4) 1920 x 1080/60P (16:9)	1920 x 1200/60P (16:10)
Dimensions and weights
Weight	5.2 kg
Dimensions (W x H x D)	300 x 120 x 416 mm
