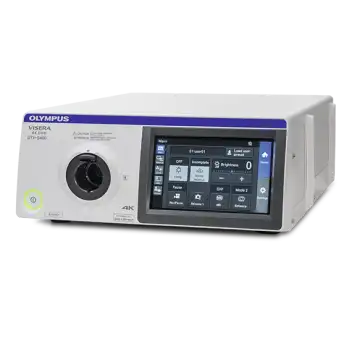

Olympus OTV-S400 VISERA 4K UHD Camera Control Unit

The VISERA 4K UHD camera control unit OTV-S400 offers 4K high-quality image processing and improved operability. It incorporates a user-friendly touch panel for control with no interruption of the procedure.

Phone：+86-21-54286005

Resources

OTV-S400_Brochure_EN

Overview Specifications Dimensions

Olympus OTV-S400 VISERA 4K UHD Camera Control Unit

The Core of Full 4K Image Reproduction.

4K High-Quality Image Processing

Wide color gamut
16-axial color-phase adjustment (more precise color setting based on surgeon’s preference)
Improved AE (automatic exposure) function

Improved Operability

Touch panel enables adjustments during procedure
Easy registrations and loading of user presets

Power Supply	Rated voltage	220–240 V AC; within ±10%
	Rated frequency	50/60 Hz; within ±1 Hz
	Rated input	350 VA
Size	Dimensions (maximum)	390 (W) × 160 (H) × 506 (D) mm
	Weight	13.5 kg
Observation	Signal system	Corresponds to the 4K and HD
	Signal output (resolution)	4096 × 2160, 3840 × 2160, or 1920 × 1080 can be selected
	Signal output (transmission method)	3G-SDI or HD-SDI can be selected
	White balance adjustment	Available
	Standard color chart output	The “Color bar” screen can be displayed
	Color tone adjustment	Red adjustment	±8 steps
		Blue adjustment	±8 steps
		Chroma adjustment	±8 steps
	Automatic gain control (AGC)	The image can be electrically amplified when the light is inadequate due to the distal end of the endoscope being too far from the object
	Contrast	Normal	Normal image
		High	Darkens the dark part and brightens the bright part compared to normal
		Low	Brightens the dark part and darkens the bright part compared to normal
	Iris Are	Auto	The exposure area is set automatically to obtain optimum brightness for the subject
		Center	Center-weighted measuring
	Image enhancement settings	Fine patterns or edges in the endoscopic images can be enhanced electrically to increase the image sharpness Either the structural enhancement or edge enhancement can be selected according to the user setup
		Structural Enhancement	Enhancement of contrast of the fine patterns in the image
		Edge enhancement	Enhancement of edges of the endoscopic image
	NBI observation	This observation uses the narrow band observation light
	Endoscope’s remote switches function	The functions of the remote switches on the endoscope can be set in the user presets
Documentation	Displaying the record state	The recording state of the video recorder can be displayed on the monitor
	Displaying the image information	The following data can be displayed on the monitor: Zoom ratio / One-touch auto focus / Observation mode / NBI observation mode
Memory backup	User presets	Up to 10 user presets can be registered
	Memorization of selected settings	The following settings are held in memory even after the video system center is turned OFF: System settings / Color tone / Color mode / Contrast / Enhancement / White balance
Classification (electromedical equipment)	Type of protection against electric shock	Class I
	Degree of protection against electric shock of applied part	TYPE BF applied part
	Degree of protection against explosion	The video system center should be kept away from flammable gases
