This routine colonoscope has a wide field of view of 170° as well as a large working channel diameter of 3.8 mm. It features the G7 grip and the Flexibility Adjuster. In addition, it has a slim diameter of 12.0 mm and includes a water jet function and CMOS technology.
Phone：+86-21-54286005

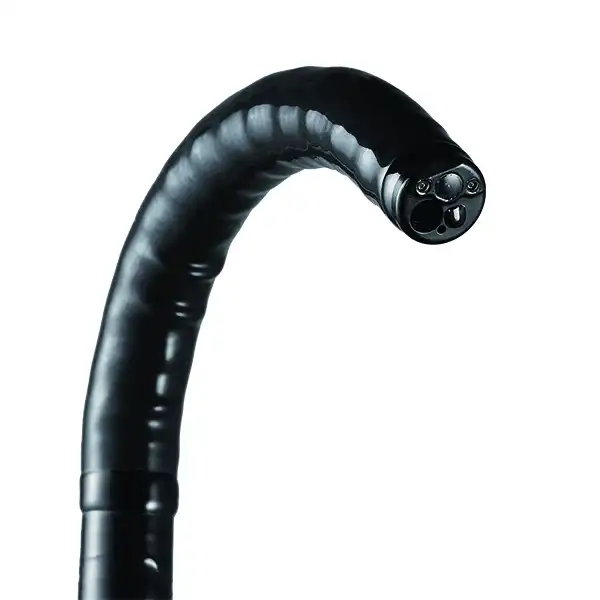

EC-760R-V/M i L
With a wide field of view of 170° as well as a large working channel diameter of 3.8 mm, this is the ultimate routine colonoscope.
It features the G7 grip and the Flexibility Adjuster. In addition, it has a slim diameter of 12.0 mm and includes a water jet function and CMOS technology.

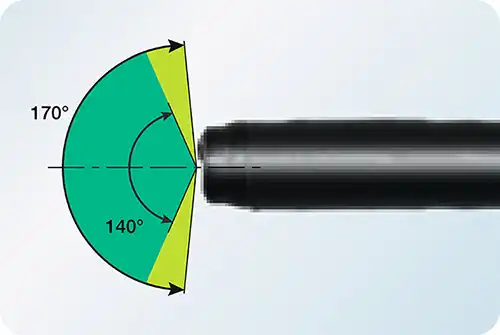

WIDE 170° FIELD OF VIEW
With video colonoscope EC-760R,a wide 170° field of view is available. Even areas that are hard to observe, such as the reverse side of folds, can be visualised more easily.
|
Viewing direction |
0°(Forward) |
|
Field of view |
170° |
|
Observation range |
2-100mm |
|
Distal end diameter |
12.0mm |
|
Insertion tube diameter |
12.0mm |
|
Minimum diameter of instrument channel |
3.8mm |
|
Bending capability |
UP 180° / DOWN 180° |
|
Working length |
EC-760R-V/M,I,L |
|
Total length |
EC-760R-V/M,I,L |
|
Water Jet |
Available |
