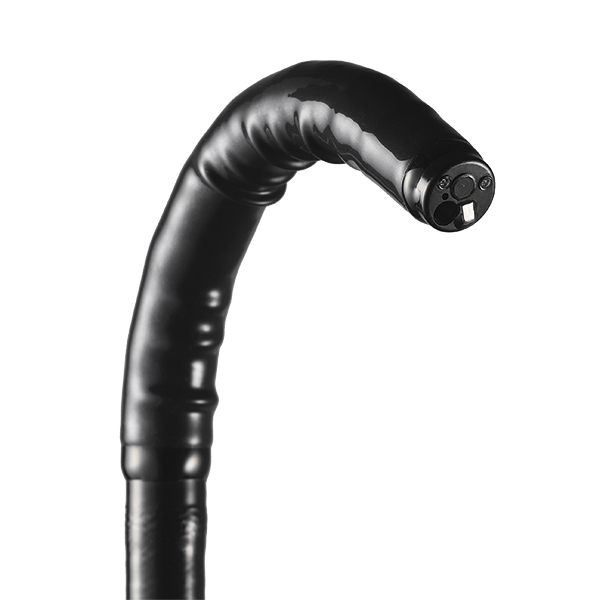

The slim zoom colonoscope features the brilliant and easy-to-operate Multi Zoom with 145 x maximum magnification (in combination with 26''). Together with BLI, details of the mucosal and vascular patterns become visible. Like the routine endoscope, it features the full range of functionalities including flexible adjustment even with the slim diameter of 11.8 mm.
Phone：+86-21-54286005
The slim zoom colonoscope features the brilliant and easy-to-operate Multi Zoom with 145 x maximum magnification (in combination with 26''). Together with BLI, details of the mucosal and vascular patterns become visible. Like the routine endoscope, it features the full range of functionalities including flexible adjustment even with the slim diameter of 11.8 mm.
|
Viewing direction |
0°(Forward) |
|
Field of view |
Normal: 140° / Closest: 56° |
|
Observation range |
1.5-100mm |
|
Distal end diameter |
11.7mm |
|
Insertion tube diameter |
11.8mm |
|
Minimum diameter of instrument channel |
3.2mm |
|
Bending capability |
UP 180° / DOWN 180° |
|
Working length |
EC-760ZP-V/M,L |
|
Total length |
1,650mm / 2,010mm |
|
Water Jet |
Available |
