The ELUXEO El-740D/S is intended for use in both the upper gastrointestinal tract and sigmoid colon and combines the former EG-530D gastroscope, and ES-530WE sigmoidoscope in one exceptional endoscope.
Phone：+86-21-54286005
EI-740D/S_Brochure_EN

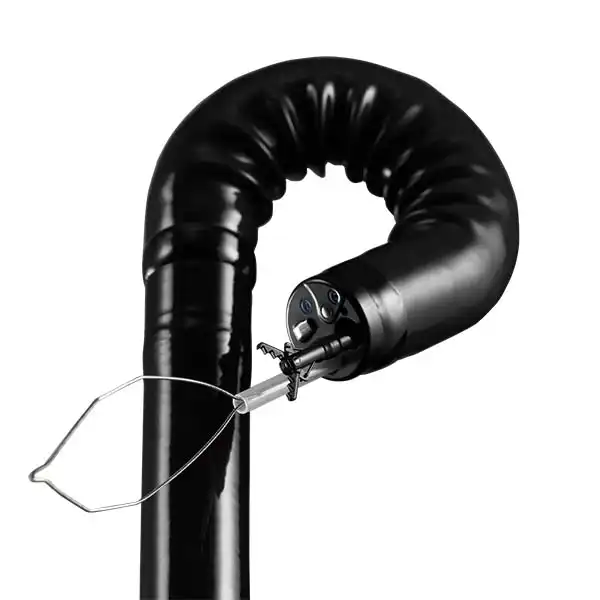

The ELUXEO El-740D/S is intended for use in both the upper gastrointestinal tract and sigmoid colon and combines the former EG-530D gastroscope, and ES-530WE sigmoidoscope in one exceptional endoscope. With its two instrument channels (3.7 and 3.2 mm) and improved suction performance, it is especially suitable for various therapeutic procedures.
Compared to the 530 series dual instrument channel endoscopes, the El-740D/S endoscope has an improved instrument channel capacity.

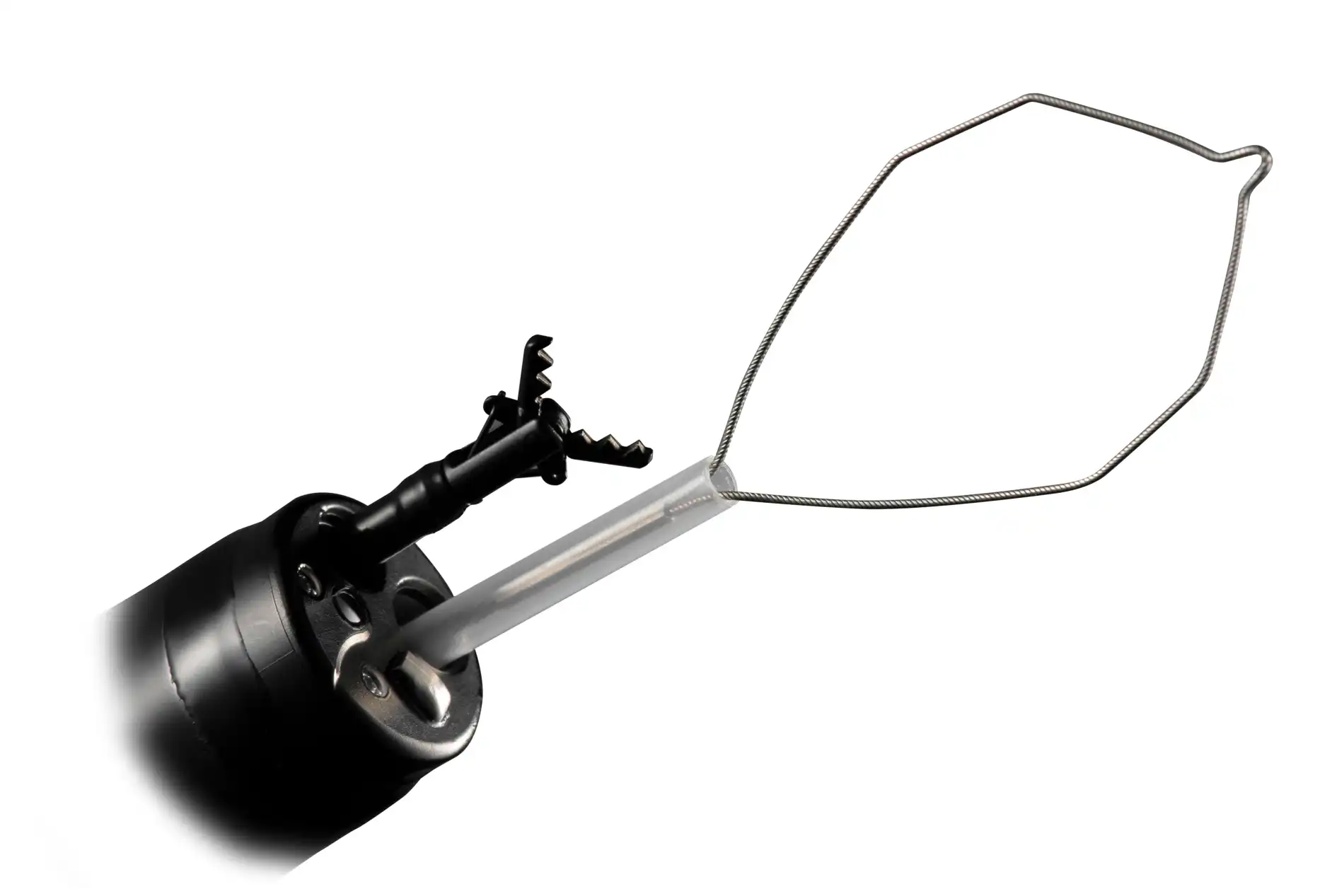

The smaller instrument channel is increased from 2.8 mm to 3.2 mm,therefore providing an improved 3.2 mm and 3.7 mm dual instrument channel configuration. By accommodating two endotherapeutic devices simultaneously, the endoscope allows for a broader range of therapeutic possibilities.
The 3.2 mm instrument channel has an increased suction performance compared to the previous 2.8 mm instrument channel of the EG-530D dual channel gastroscope both with and without a device inserted into the channel.
| Field of view | 140° |
| Observation range | 3 - 100 mm |
| Bending capability | Up 210°/Down 90° Right 100°/Left 100° |
| Distal end ø | 12.8 mm |
| Insertion tube ø | 12.8 mm |
| Working channel ø | 3.7 mm / 3.2 mm |
| Working length | 1030 mm |
| Total length | 1330 mm |
