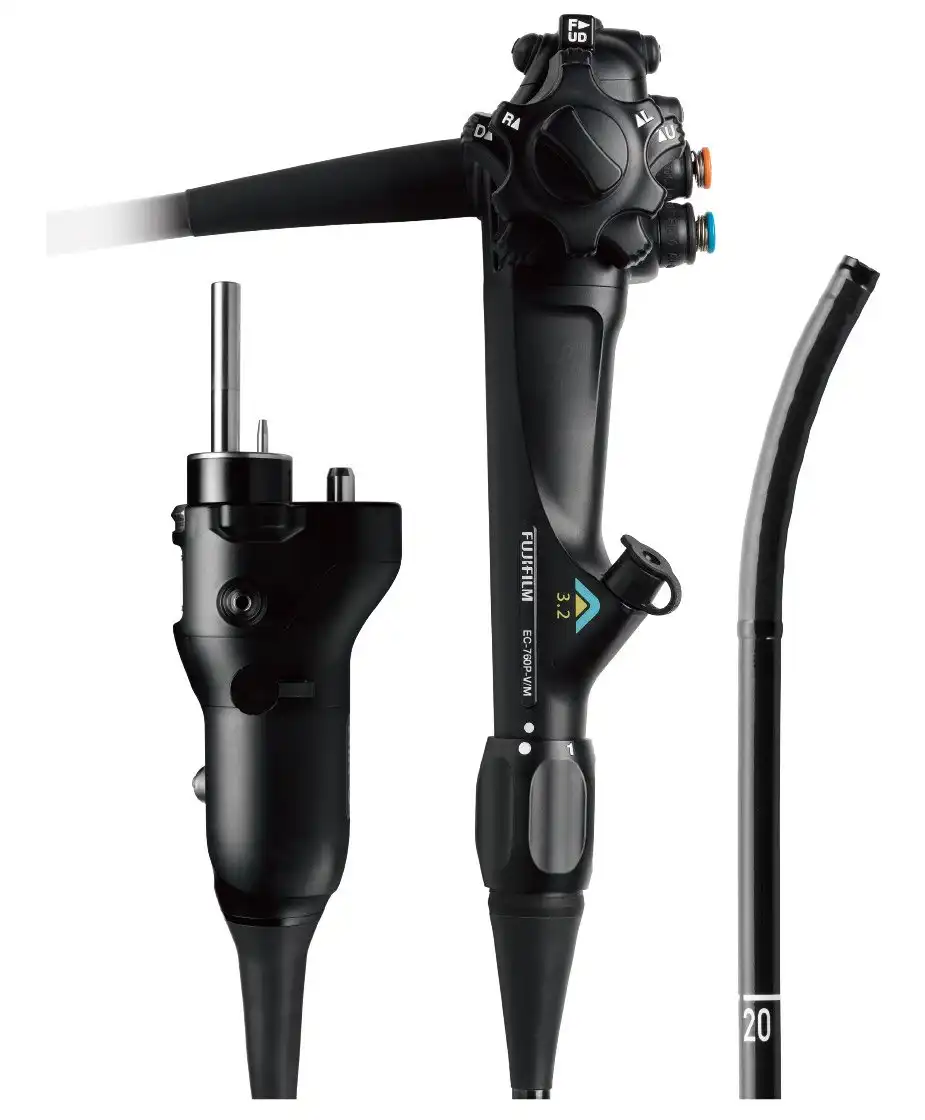

Fujifilm EC-760P-V/M,L Ultra Slim Colonoscope

EC-760P-V/M,L, a wide 170° field of view is available. It is designed to observe and approach smoothly, even areas that are hard to observe, such as the reverse side of folds.

Phone：+86-21-54286005

Resources

Overview Specifications Dimensions

EC-760P-V/M,V/L Ultra Slim Colonoscope

This ultra slim colonoscope from the ELUXEO™ 760 series has a distal end diameter of only 11.1 mm and is therefore expected to be useful for narrow GI anatomy, cases featuring stenosis and therapeutic use. A wide 170° field of view enables a visualisation even in hard-to-observe areas. It features the G7 grip and the Flexibility Adjuster for easier insertion.

EC-760P-V/M,V/L

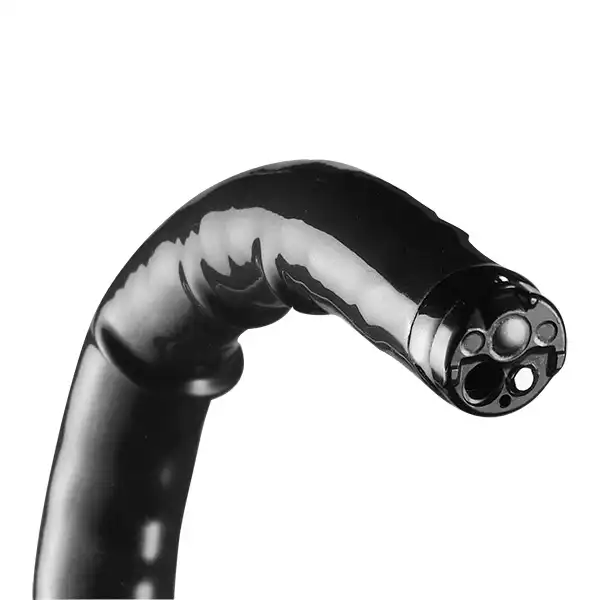

Wide 170° field of view
EC-760P-V/M,V/L a wide 170° field of view is available. It is designed to observe and approach smoothly, even areas that are hard to observe, such as the reverse side of folds.

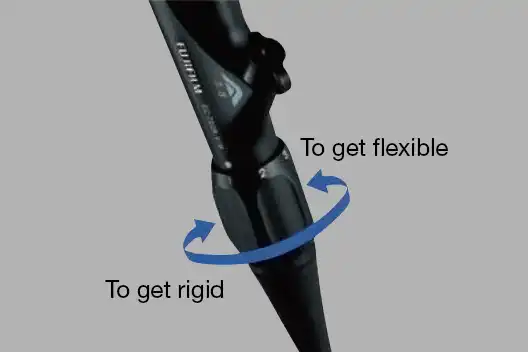

Flexibility Adjuster

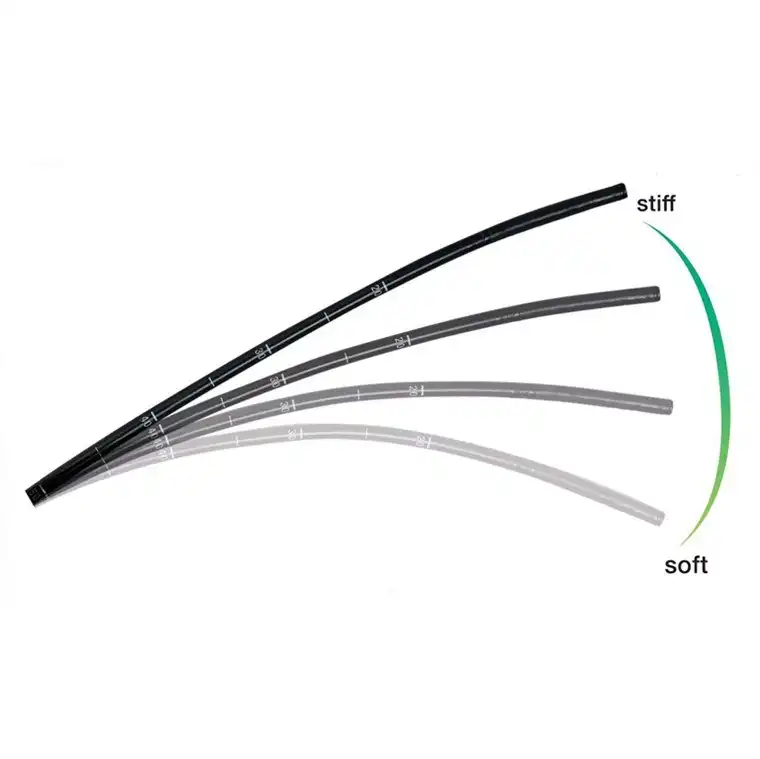

The stiffness of the flexible portion of the scope can be easily adjusted according to your preference. This is expected to be helpful when inserting the scope into segments such as the sigmoid colon and the transverse colon where the endoscope follows the intestinal tract more smoothly.

Flexibility Adjuster

Viewing direction	0°(Forward)
Field of view	170°
Observation range	2-100mm
Distal end diameter	11.1mm
Insertion tube diameter	11.5mm
Minimum diameter of instrument channel	3.2mm
Bending capability	UP 180° / DOWN 180° RIGHT 160° / LEFT 160°
Working length	1,330mm / 1,690mm
Total length	1,650mm / 2,010mm
Water Jet	Available
