Olympus GIF-XZ1200 Zoom Gastroscope

The GIF-XZ1200 is a state-of-the-art magnifying gastroscope that enables visualization of the finest details of suspicious lesions with up to 125x*1 magnification.

Phone：+86-21-54286005

Resources

GIF-XZ1200_Brochure_EN

Overview Specifications Dimensions

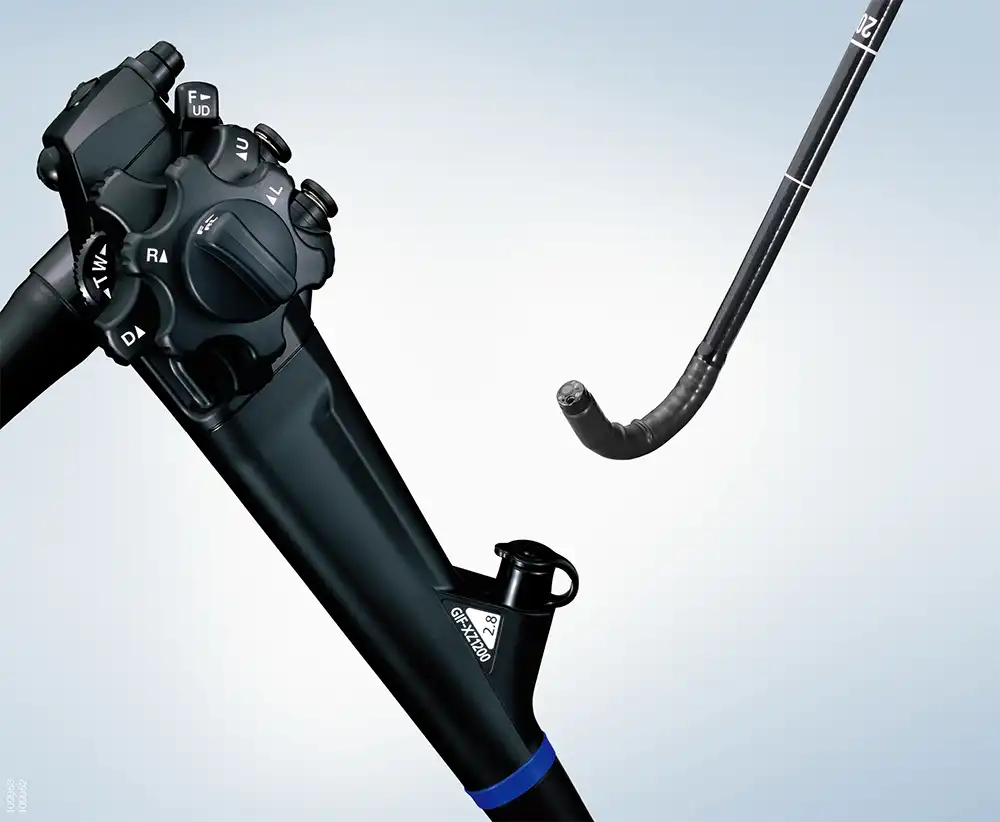

EVIS X1 GIF-XZ1200 Zoom Gastroscope

GIF-XZ1200

An Innovative Gastroscope with 125x^*1 Optical Magnification

Optical 125x Magnification
The GIF-XZ1200 is a state-of-the-art magnifying gastroscope that enables visualization of the finest details of suspicious lesions with up to 125x^*1 magnification. This advanced optical performance is boosted by NBI (Narrow Band Imaging) capability for even more discriminating observation, supporting increased diagnostic accuracy and confidence.

白光图像 NBI 光学放大125x

White Light Image Optical 125x magnification with NBI

High FPS (Frame Per Second) Mode
The GIF-XZ1200 uses a sequential scanning method to produce endoscopy images. In addition, thanks to the incorporation of a proprietary CMOS chip, the GIF-XZ1200 features a High FPS (Frame Per Second)Mode^*2 that can capture images at 120 frames per second. This helps minimize flickering and color fringing.

High FPS (Frame Per Second) Mode

Distal Hood MAJ-1989
For best results, we recommend use of the Distal Hood MAJ-1989. Especially helpful with magnifying endoscopes, this attachment helps maintain an optimal distance to the mucosa, thereby making it easier to stay in focus.

MAJ-1989

Precise Magnification Control by Zoom Lever
The provided manual zoom lever allows you to manipulate the zoom lever and adjust the magnification ratio with greater precision to obtain a magnified endoscopic image that better suits your needs.

Zoom Lever

Other Features

ErgoGrip – Improved Control Section
Compatible with TXI, RDI, NBI when connected to the CV-1500
Waterproof One-Touch Connector

*1 With OEV321UH 4K UHD LCD MONITOR. *2 Only available when connected to CV-1500.

Model	GIF-XZ1200
Optical System	Field of view	Normal focus mode: 140° Near focus mode: 87°
	Direction of view	Forward viewing
	Depth of fi eld	Normal focus mode: 7-100mm Near focus mode: 1.5-3mm
Insertion Section	Distal end outer diameter	9.9mm
	Insertion tube outer diameter	9.9mm
	Working length	1030mm
Instrument Channel	Channel inner diameter	2.8mm
Instrument Channel	Minimum visible distance^*1	2 mm (Normal focus mode)
Bending Section	Angulation range	Up 210° / Down 90° / Right 100° / Left 100°
Total Length	1350mm
Compatible System	Video System Center CV-1500 Video System Center CV-290 Light Source CLV-290SL, CLV-290
