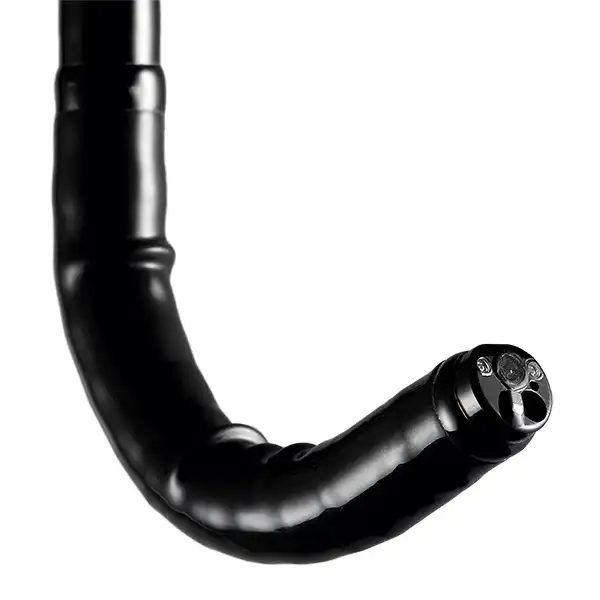

Fujifilm EG-760Z Optical Magnification Gastroscope

This zoom gastroscope features the well-known 145x Multi Zoom (in combination with 26'' screen) which leads to clear and more detailed visualisation, supporting deeper analysis of mucosal structures. It has a small bending radius and similar functionality to the routine gastroscope including all features.

Phone:+86-21-54286005

Resources

EG-760Z_Brochure_EN

Optical Magnification Gastroscope

EG-760Z

This zoom gastroscope features the well-known 135 x Multi Zoom which leads to clear and more detailed visualisation,allowing deeper analysis of mucosal structures. It has a small bending radius and similar functionality to the routine gastroscope including all features.

EG-760Z



SMALL BENDING RADIUS

The EG-760Z features a tight bending section radius with improved angulation.
This allows the endoscope to approach the targeted observation point and lesion more easily and with less effort.

弯曲半径

Viewing direction

0°(Forward)

Field of view

Normal: 140°
Closest: 56°

Observation range

1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm

Distal end diameter

9.9 mm

Insertion tube diameter

9.8 mm

Minimum diameter of instrument channel

2.8 mm

Bending capability

UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°

Working length

1,100 mm

Total length

1,400 mm

Water Jet

Available

  • Product name: Video Endoscope
  • GMDN: 38805
  • Generic name: Flexible video gastroduodenoscope
