The leading-edge high definition endoscopes, equipped with over megapixel CMOS image sensor, realize advanced observation and diagnosis
Phone：+86-21-54286005
The 600 series CMOS endoscopes_Brochure_EN

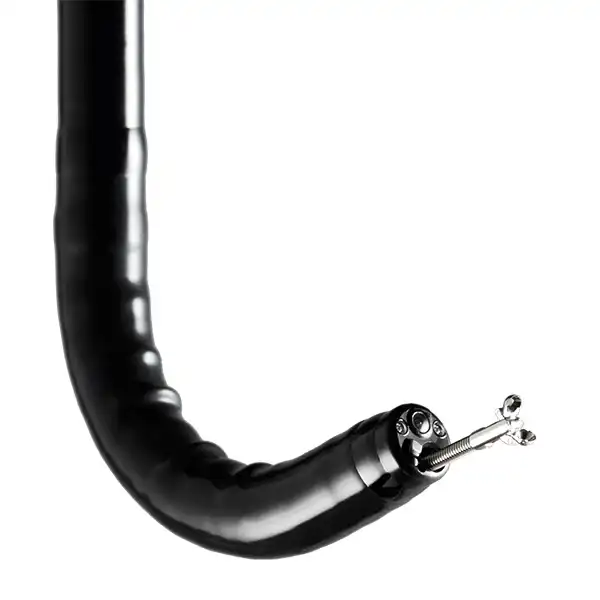

EG-600WR
New horizons in diagnostic performances
CMOS Technology
Over megapixel CMOS image sensor
producing super-high definition image By adapting over megapixel CMOS image sensor, 600 series endoscopes enable super-high definition image to be produced.And the leading-edge CMOS Technology realize less noise and brilliant image. Those features make advanced observation and diagnosis possible.
Megapixel 60P video realize
smooth and clear video ability CMOS Technology realize 60 frame progressive video even though over Megapixel. With the 60 frame progressive scanning method, it is also possible to produce high-definition and less blur still images.
EG-600WR
Close Focus with CMOS Technology
Close Focus with CMOS Technology enhance image diagnosis
The newly designed high performance optical system enhances close focus observation capability up to 2 mm.
The focus at the edges of an image has been improved,minimizing distortion in observation of a lumen. Through a combination with the megapixel CMOS image sensor, high performance optical system assists various observations ranging from close-up to distant views.
EG-600WR
FICE with CMOS Technology
CMOS Technology produces advanced FICE image
Through higher resolution and improved noise reduction, FICE images are more sharp and clear than ever.
It enables easier differentiation between lesion-affected and non-affected tissue.
FICE 1 Stomach
Water jet function
The gastroscope and colonoscope both feature the water jet function and helps both better observation and therapeutic procedure.
|
Viewing direction |
0°(Forward) |
|
Field of view |
140° |
|
Observation range |
2-100 mm |
|
Distal end diameter |
9.2 mm |
|
Insertion tube diameter |
9.3 mm |
|
Minimum diameter of instrument channel |
2.8 mm |
|
Bending capability |
UP 210° / DOWN 90° |
|
Working length |
1,100 mm |
|
Total length |
1,400 mm |
|
Water Jet |
Available |
