Fujifilm EG-580NW2 Ultra-slim gastroscope

The Super CCD chip technology offers an outstanding high resolution image quality within this ultraslim 5.8 mm gastroscope. The latest FICE technology supports an advanced detection of lesions and tissue.

Phone：+86-21-54286005

Resources

EG-580NW2_Brochure_EN

Overview Specifications Dimensions

EG-580NW2 ultraslim gastroscope

The advanced ultraslim gastroscope EG-580NW2 – superior image quality and excellent maneuverability

EG-580NW2

580 Super CCD

High resolution image quality
The Super CCD chip technology offers an outstanding high resolution image quality within this ultraslim 5.8 mm gastroscope. The latest FICE technology supports an advanced detection of lesions and tissue.

肠绒毛的白光图像肠绒毛的FICE图像

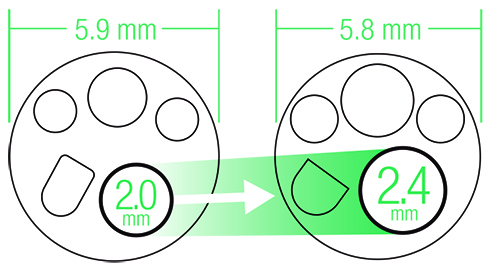

Enlarged 2.4 mm forceps channel

Improved suction capacity
The forceps channel of 2.4 mm realizes a higher suction ability compared to other ultraslim gastroscopes. Especially when the therapeutic accessory is inserted into the forceps channel.

标准胃镜 EG-580NW2

Improved lense washing ability

Clear view on inspected area
The newly designed air/water nozzle and ducts enable endoscopists to switch quick between the air and water supply. A perfect solution to keep a clear view on the inspected area by an excellent lense washing ability.

Advanced maneuverability

For accurate examinations
Thanks to the redesigned forceps channel the passing ability of accessory is smooth and easy within this ultraslim endoscope.

Viewing direction	0°(Forward)
Field of view	140°
Observation range	3-100mm
Distal end diameter	5.8mm
Insertion tube diameter	5.9mm
Minimum diameter of instrument channel	2.4mm
Bending capability	UP 210° / DOWN 90° RIGHT 100° / LEFT 100°
Working length	1,100mm
Total length	1,400mm
